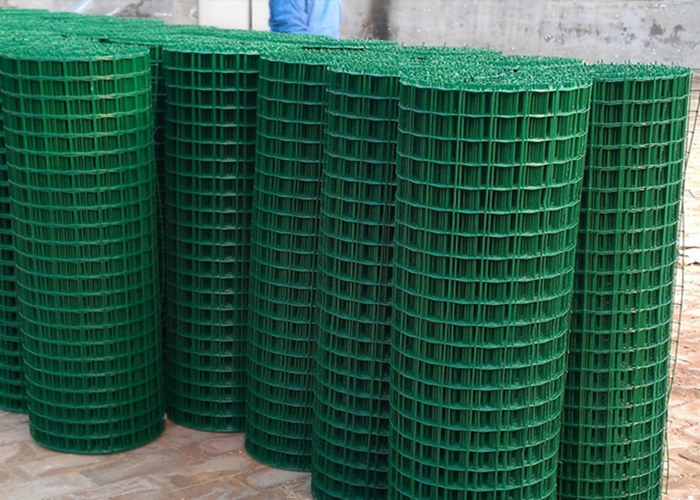

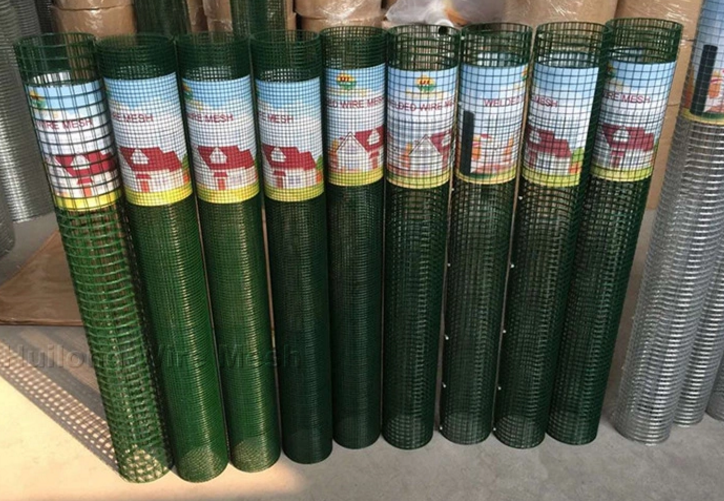

Electric Galvanized Wire With Green Pvc 1/2" (12.7mm*12.7mm*0.6mm ) Pvc Welded Mesh
Pvc welded Wire Mesh Production
We are specialized in producing all kinds welded wire mesh for 20 years, we could offer u best quality and competitive price.
Welded wire mesh material:
Low carbon steel wire, galvanized wire and stainless steel wire
Welded wire mesh kinds :
electro galvanized welded wire mesh, hot dipped galvanized welded wire , PVC welded wire mesh ,
stainless steel welded wire mesh, BRC 3315 Mesh ( special welded wire mesh for Singapore and Malaysia Market .)
Welding characteristics:
Including galvanized before or after welding . It is divided into hot dipped , electro galvanizing , PVC coating , plastic sprayed . It has the characteristics of corrosion-resisting and oxidation-resisting .
Welded wire mesh Using :
Industry , Agriculture , Building , Transportation , Mine , Filed , Lawn , Cultivation , Fence Guade , Decorate , Machine Protection and etc.
Wire diameter:0.4mm-6mm
Mesh size: 1",2",4",1/2",3/4",1/4",3/8", 5/8",1" x 2", 2''x 4", 4''x 4" ec
Features of processing: electro galvanized before welding
electro galvanized after welding
hot dipped galvanized before welding
hot dipped galvanized after welding
vinyl coated/pvc coated after welding
Welded wire mesh specifications:
| Standard Welded Wire Mesh (in 30m length, Width of 0.5m-1.8m) |
| Mesh | Wire Gauge (BWG) |
| Inch | MM |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22-24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19-22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16-23 |
| 5/8" x 5/8" | 16mm x 16mm | 18-21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16-21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16-21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14-19 |
| 1" x 2" | 25.4mm x 50.8mm | 14-16 |
| 2" x 2" | 50.8mm x 50.8mm | 12-16 |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 12-16 |
| Welded Fencing Mesh (in 30m Length, Width of 0.5m -1.8m) |
| Mesh | Wire Gauge (BWG) |
| Inch | MM |
| 2" x 3" | 50mm x 75mm | 1.65-2.5mm |
| 3" x 3" | 75mm x 756mm | 1.65-2.75mm |
| 2" x 4" | 50mm x 100mm | 2.1-2.9mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| PVC Coated Welded Mesh (in 30m Length, Width of 0.5m-1.2m) |
| Mesh | Wire Gauge (BWG) |
| Inch | MM |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16-21 |
| 3/4" x 3/4" | 19mm x 19mm | 16-21 |
| 1" x 1" | 25.4mm x 25.4mm | 15-20 |
